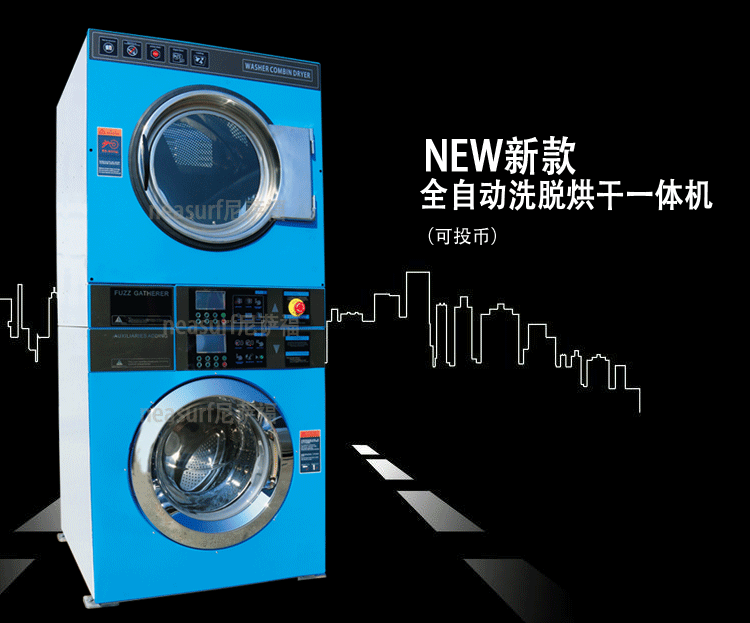

15公斤洗脫烘一體機

●全自動雙層洗脫烘一體機基于将水洗機、脫幹機、烘幹機有機整合，實現一機多用的基礎上開發研制而成。具有洗滌、脫幹、烘幹三種功能。并且洗或脫和烘幹可以同時進行。全自動雙層洗脫烘一體機是由上下兩部分組成，為新創的上下雙層立式結構機型，可分體組合，上部是烘幹機，下部是水洗脫幹機。

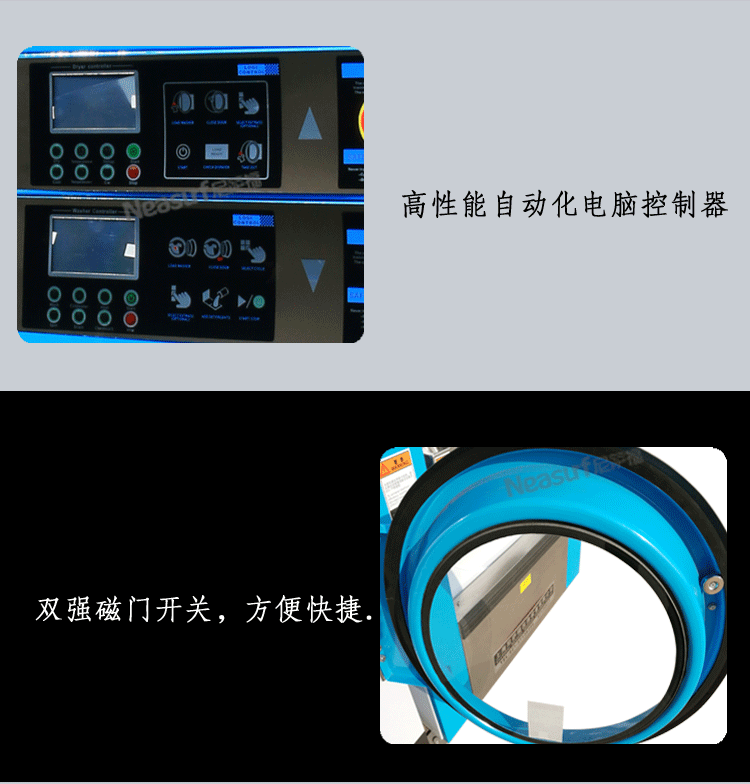

水洗、脫幹、烘幹全部采用電腦闆集中控制。一台機器完全代替傳統的洗脫機和烘幹機兩台機器。整機結構合理、緊湊，占地面積節省100%。

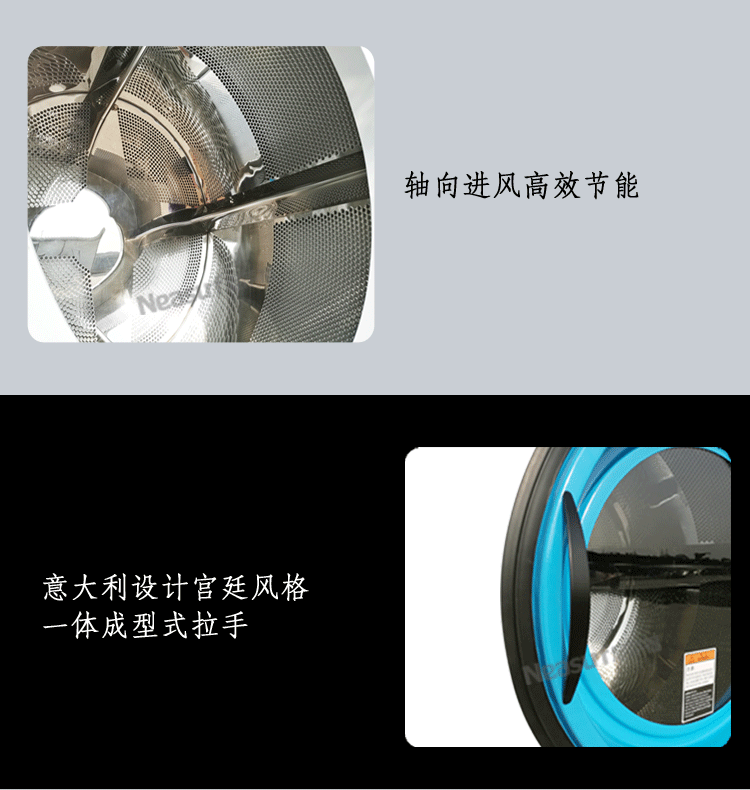

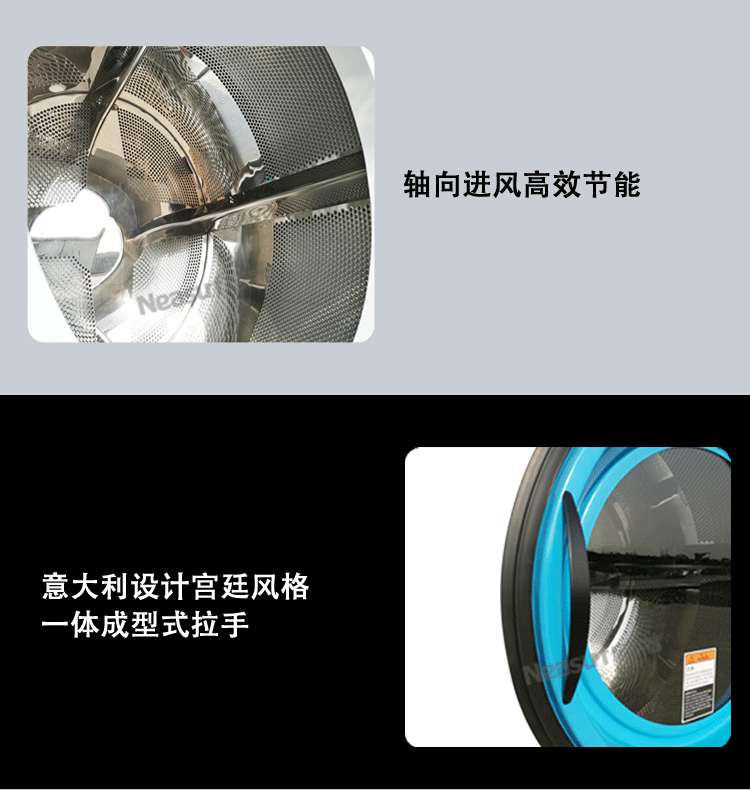

烘幹機采用軸向進風形式，比傳統徑向進風形式更有效地利用熱能量，縮短烘幹時間，比傳統的徑向進風模式更有效的利用熱能，降低烘幹時間，節約成本。
雙層結構占地空間極小，移動方便，便于維護。

1. full automatic two-layer washing-SGXinning-drying machine is a combination of water washing machine and dewatering machine and drying machine. It is a multifunctional machine. Washing and dewatering or drying may run at the same time. It consists of two parts—the upper part and the lower part. It is domestic original. It may be combined or seperated. The upper is drying machine and the lower is water washing SGXinning machine.
2. water washing and SGXinning and drying are all controlled by the computer. One machine can substitute for the traditional two machines—washing and dewatering machine and drying machine. Compact and reasonable structure. The SGXace occupation may be saved 100%.
3. axially inlet air. It is more efficient than the traditional one. Shorten the drying time and lower the cost.
4. small SGXace occupation. It is easy to move and to maitain.

産品介紹：

産品展示

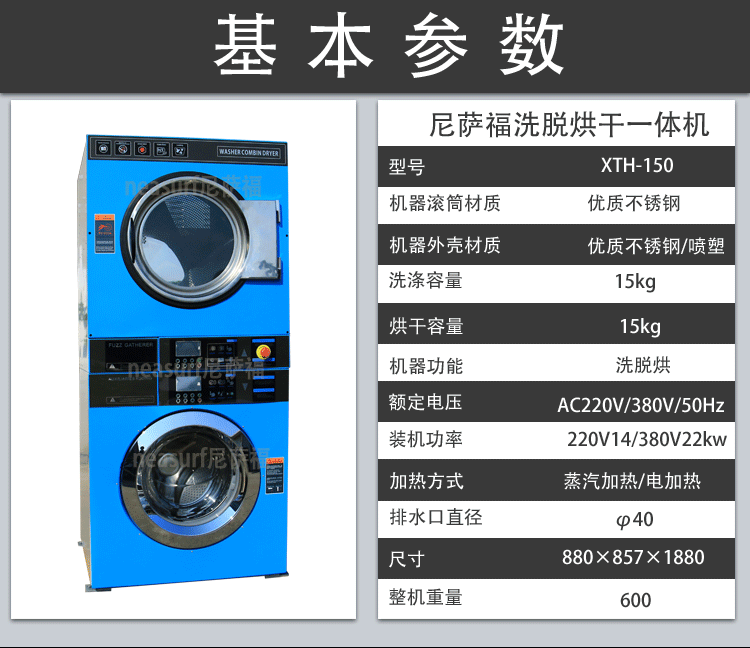

規格型号Model ＆ norm	XTH-120	XTH-150
洗滌容量Washing capacity	12	15
烘幹容量Capacity of dry clothes	12	15
工作電壓（V）Washing voltage	AC220V/380V/50Hz	AC220V/380V/50Hz
洗滌速度Washing speed	45	45
均布速度Distribution speed	60	60
高脫速度High Extract speed	900	900
洗滌電機功率Motor power	0.9	1.5
烘幹電機功率Motor power	0.12	0.14
風機功率Blower power	0.12	0.13
烘幹功率（Kw）Power of Drying Heater	220V9/380V14/415W 14	220V9/380V14/415V 14
洗滌加熱器功率（Kw）Power of Heater	3	7
裝機容量（Kw）Installde Capacity	220V10.14/380V15.14	220V10.14/380V15.14
耗水量（L/h）Water Consumption	200	240
耗汽量（Kg/h）Stesm Consumption	≦15	≦18
蒸汽壓力(MPa)Steam pressure	0.4-0.5	0.4-0.5
冷水進口尺寸Cold Water Inlet	φ20	φ20
蒸汽進口尺寸Steam Inlet	φ15	φ15
排水口尺寸Water Drain	Φ50	Φ50
整機重量Net weight	470	800
外形尺寸Overall Dimension	880×857×1888	908×986×2217
